Documentation Index
Introduction
This directory holds the usage documentation for moonbit-libyue. The component API has two usage styles, semantically identical: the classic per-setter approach (X::new() + set_xxx()), or the props-style one-shot approach (X::make(...), just a bundle of setters); all types are referenced via @yue, and the widget API quick reference (parameters / method tables) is in components.md.
Never touched MoonBit? Start from the five-minute tutorial — learning MoonBit, installing dependencies, and building your first desktop app.
Packages
Since 0.5.11 the module is split into sub-packages — moon add NoahLiu/moonbit-libyue gets you all of them, but you only compile and link what you import (MoonBit builds the import closure; an unused package costs nothing in your binary):
Import in moon.pkg | Alias | Contents |
|---|---|---|
NoahLiu/moonbit-libyue/yue | @yue | Core: FFI, native widgets (Window / View / Label / Button / Entry / Table / Tab / Menu / dialog…), Painter, events, Store/Signal, theme, tray, file/env helpers |
.../yue/declarative | @declarative | Declarative layer: Node/mount render tree, node constructors, bind_label/bind, hover group, overlay scroll |
.../yue/components | @components | Themed component library: buttons / inputs / selection / forms / navigation / layout / data display / feedback / overlays |
.../yue/charts | @charts | 20+ chart types plus the cross-cutting interactive layer |
.../yue/icons | @icons | Vector icon system (draw_icon and the icon views/buttons) |
.../yue/markdown | @markdown | markdown_view rendering (this package pulls in the mizchi/markdown dependency) |
.../yue/system | @system | OS capabilities: autostart, single instance, power & sessions, volume, brightness, media keys, wallpaper, Bluetooth, printers, disk volumes, browser history… (pulls in subproc / sqlite) |
.../yue/browser | @browser | Webview widget — import only if you need it (it is the only package that links WebKit/WebView2) |
The tutorial imports core + declarative; the themed component library and everything above it is opt-in.
Demo
Five examples, from shallow to deep:
moon run examples/hello # minimal window with the original widgets
moon run examples/hello-themed # minimal example of the themed component library (theme_apply + button_t/input_t/label_t)
moon run examples/showcase # full-capability demo board: 14 pages, three grouped sidebars, component library + system capabilities
moon run examples/sysmonitor # flagship app: Ubuntu process manager & hardware monitor (1000-row process table + live curves)

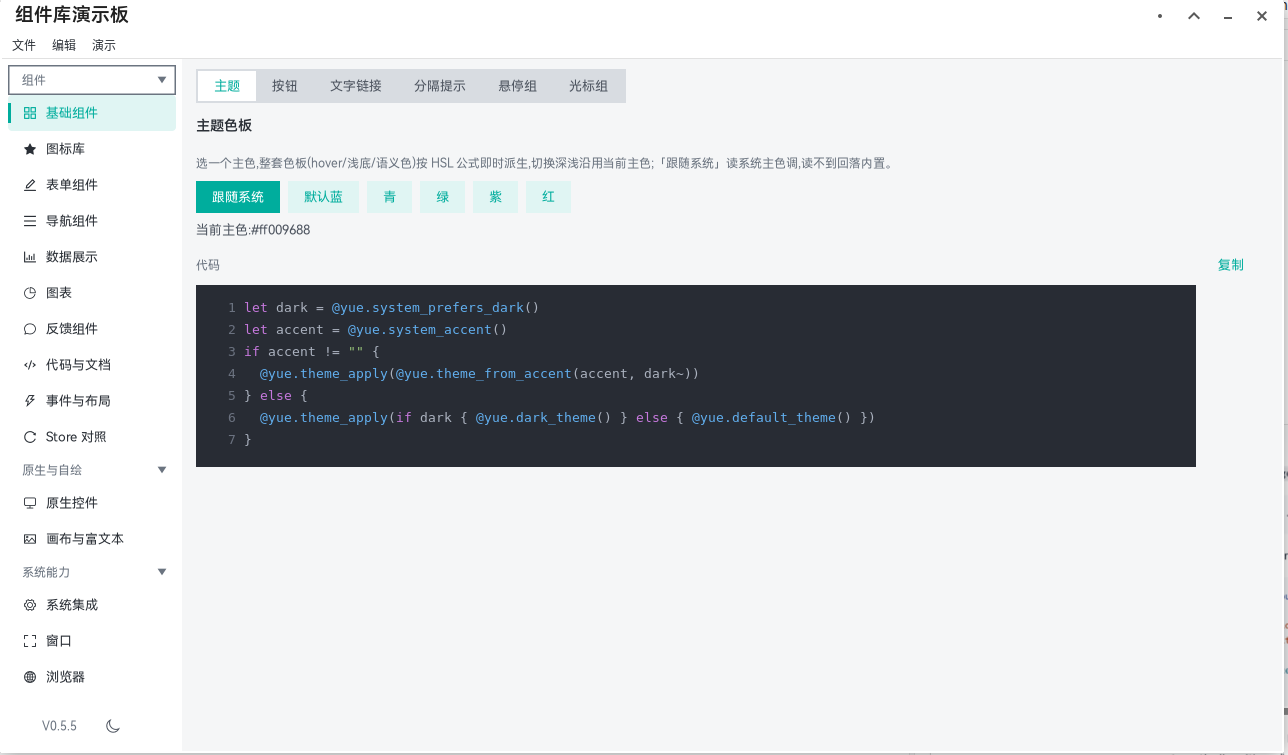

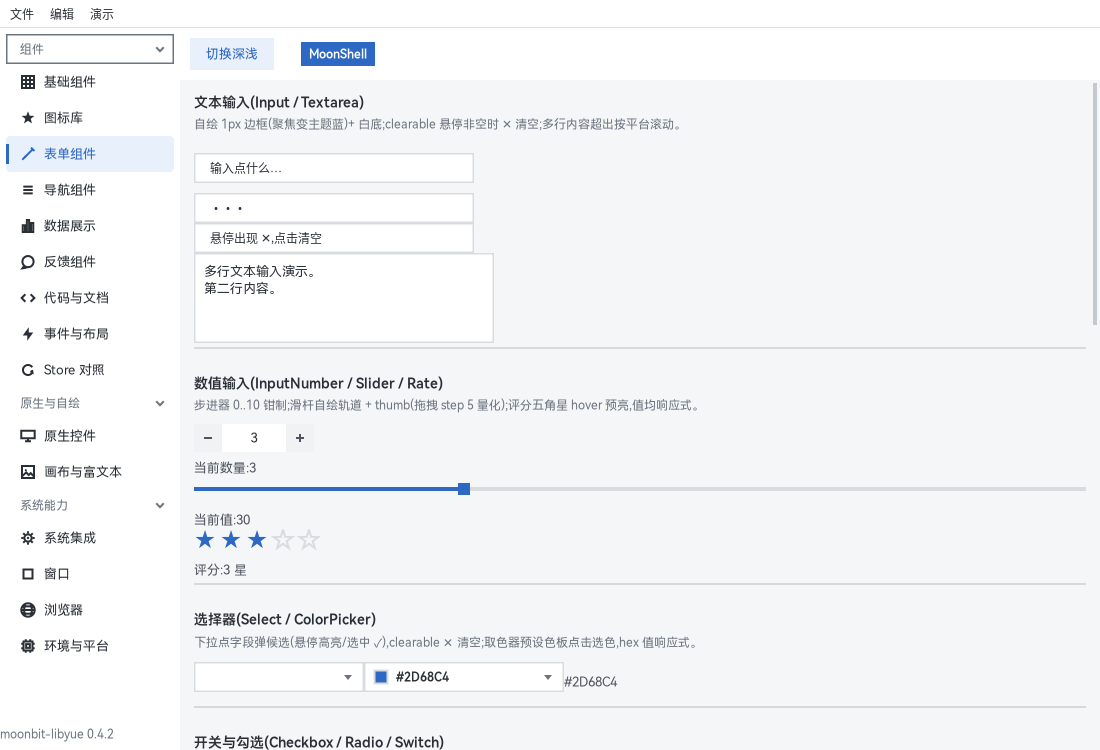

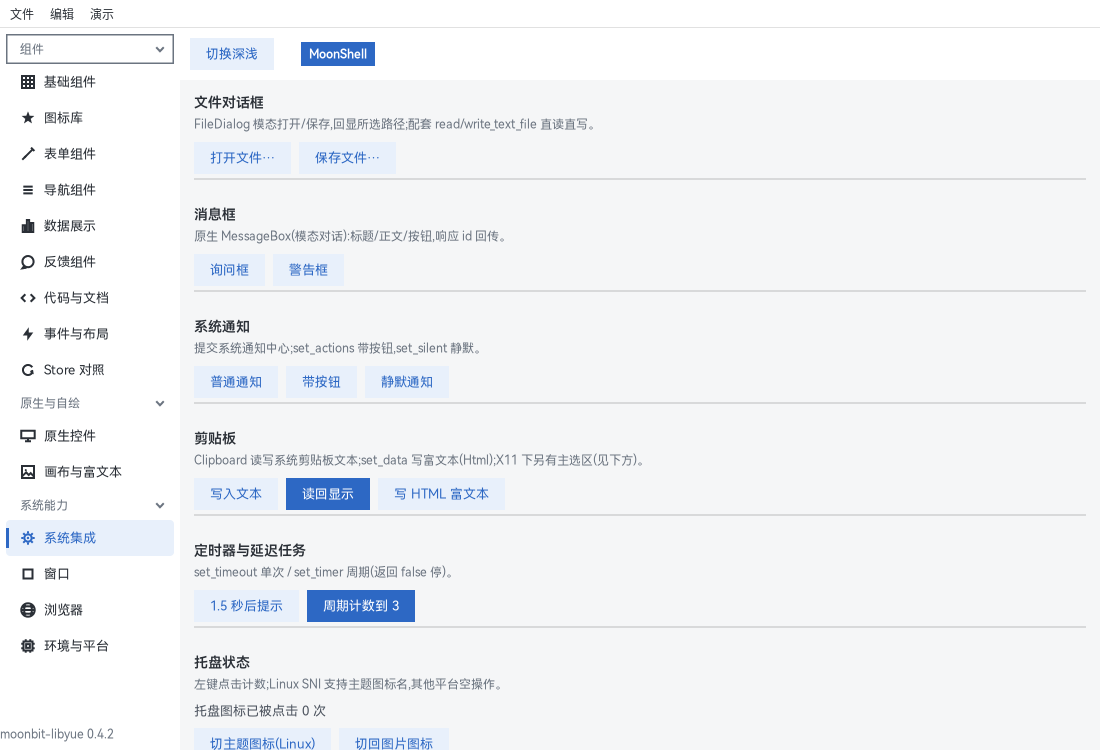

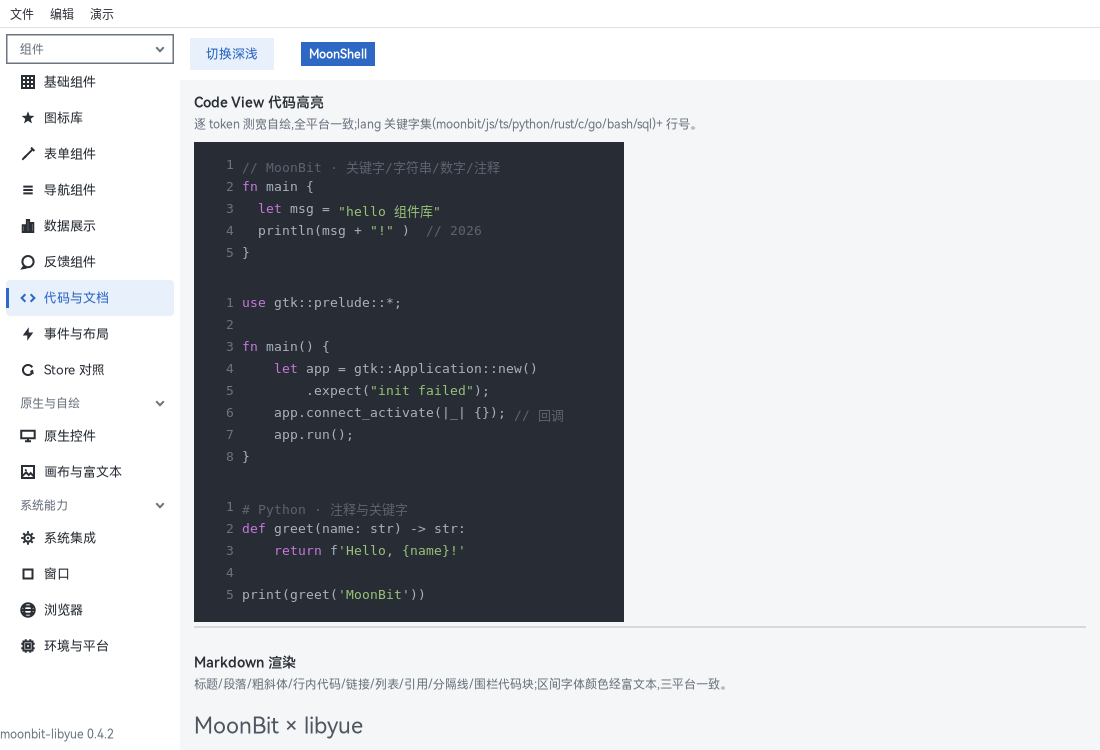

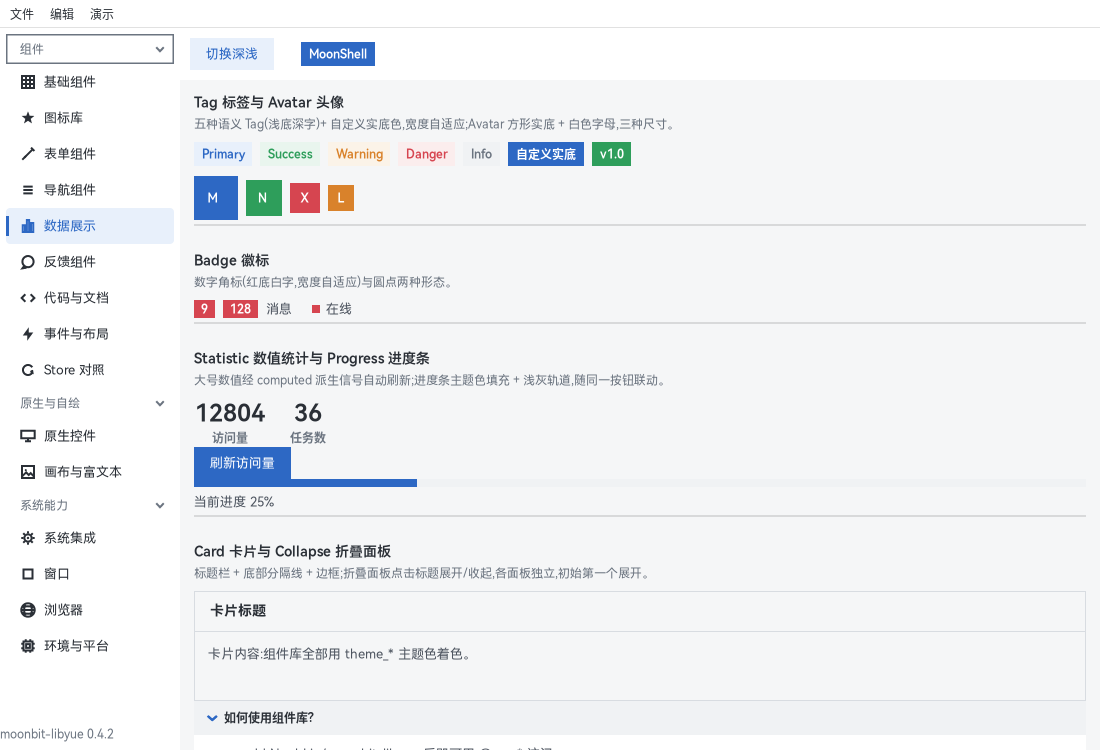

moon run examples/systemprobe # system capabilities + extended charts demo (volume/brightness/browser & VS Code history/app lookup + radar/heatmap/candlestick/funnel/boxplot/sankey)The showcase covers: Basic / Icons / Form / Navigation / Data Display / Charts / Feedback / Code & Docs / Events & Layout / Store comparison + Canvas & rich text + System Integration / Window / Browser, with a collapsible grouped side menu and the package version pinned at the bottom (kept in sync with moon.mod). Each page's source is its own file (examples/showcase/pages/*.mbt) — the best copy-paste material library; screenshots of the component library:

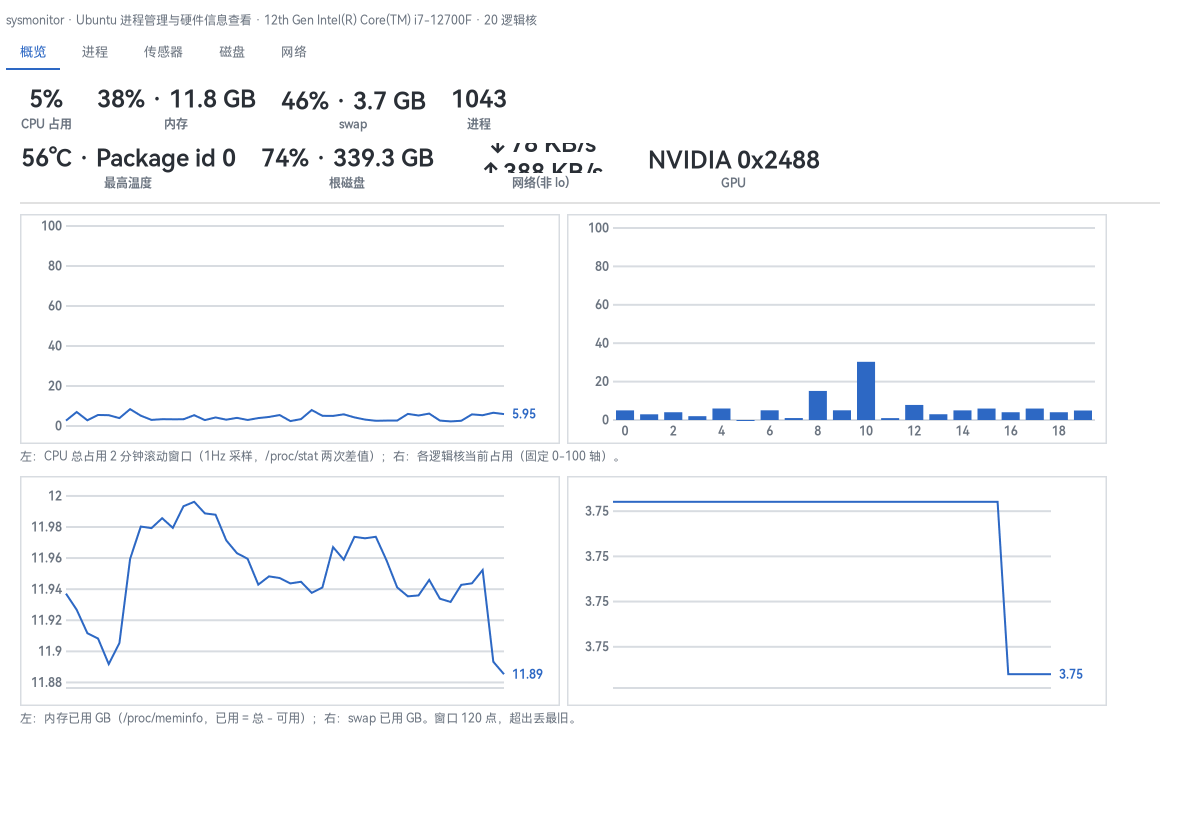

sysmonitor: process manager & hardware monitor
The library's flagship app for expressiveness + performance: the data layer reads /proc and /sys in pure MoonBit (two-sample CPU diff, memory, a 1000-row process list, hwmon temperatures, disk IO and capacity, PCI GPUs, NIC rates), with the only syscalls going through the app's own native stub. Five tabbed pages (Overview / Processes / Sensors / Disks / Network), one 1Hz timer driving all sampling; curves and value cards repaint the canvas only, never rebuilding the view tree; light/dark follows the system.

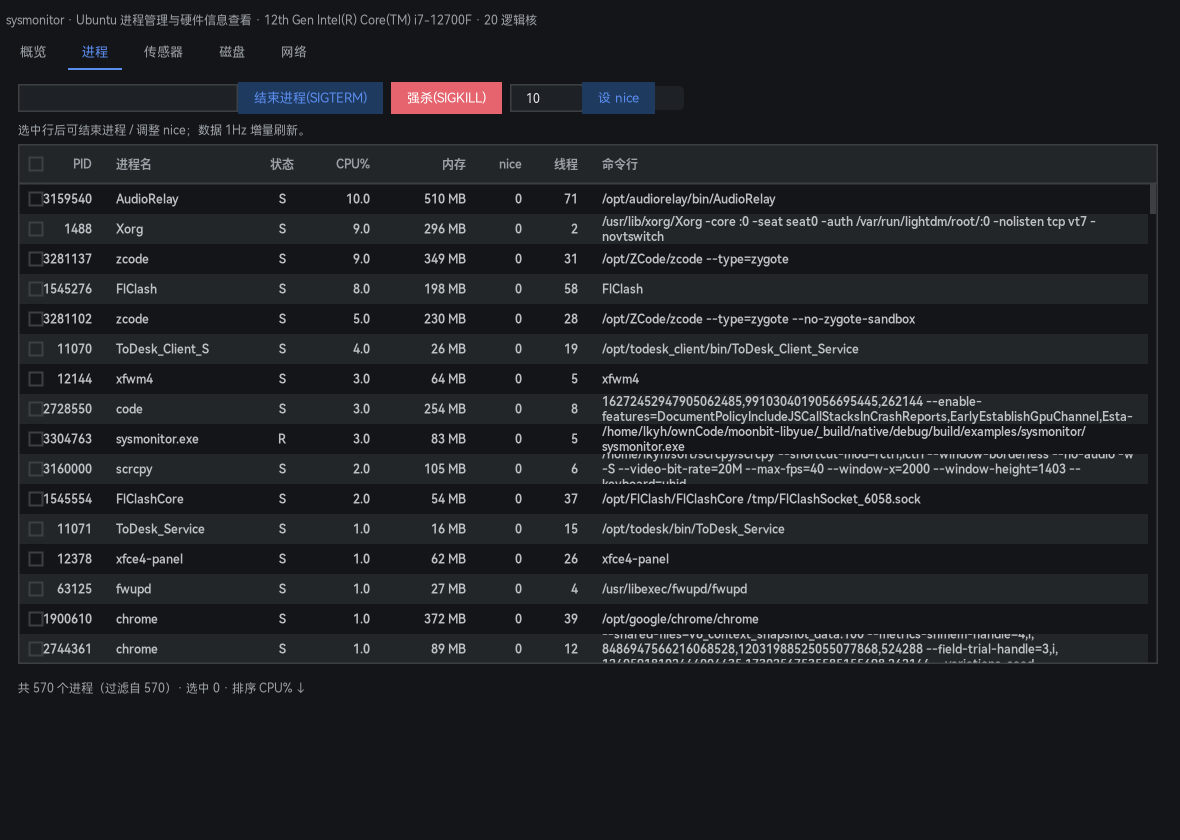

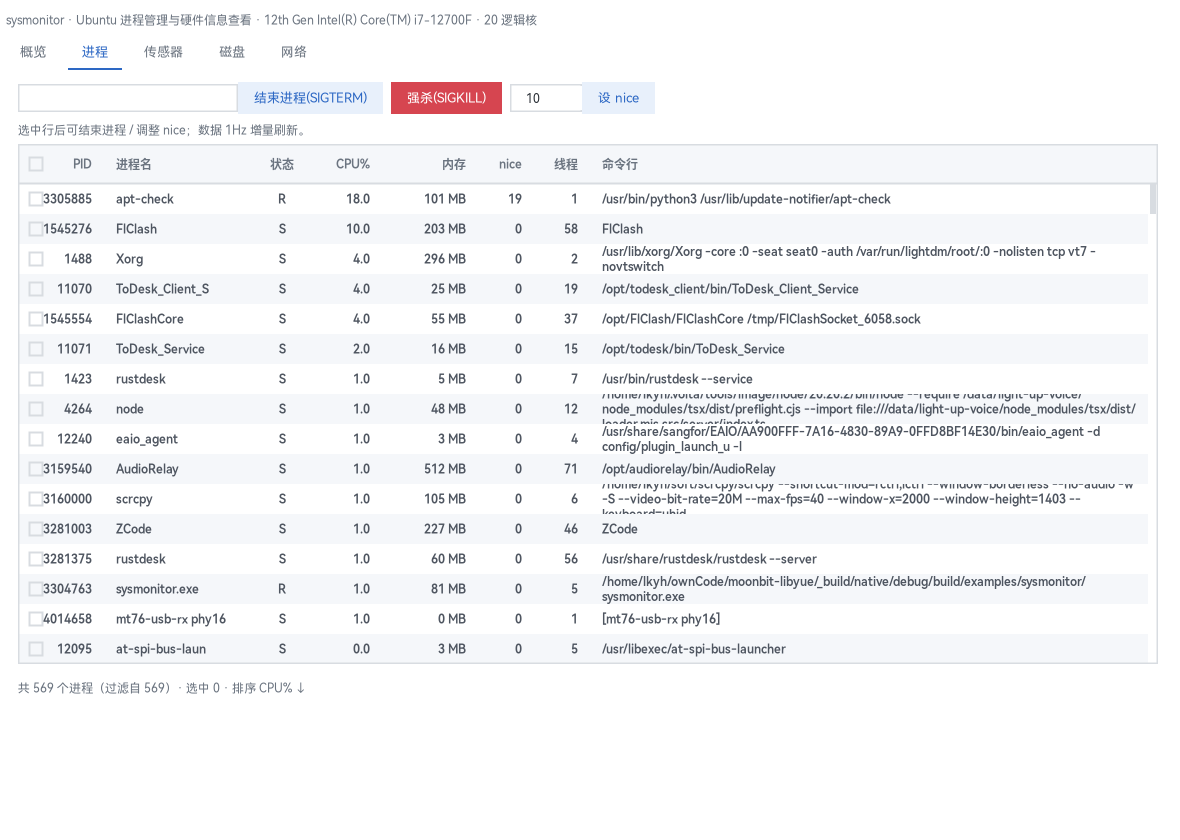

Process page: a virtual table at the 1000-row scale with search filtering, six sortable columns, and selection-driven kill (SIGTERM, falling back to SIGKILL) / renice, with errno mapped to Chinese notices. Measured: full sampling of 1053 processes in 14.94ms/pass, steady-state 1Hz CPU 2-3% (figures in adaptation.md).
Routing
| Document | Content |
|---|---|
| tutorial.md | Five-minute tutorial (for MoonBit newcomers): from moon new to a running window, avoiding the three newcomer pitfalls one by one; includes links to the official MoonBit tutorial & Tour |
| aboutlibyue.md | About me and libyue: how the author met this library and how the binding came to be |
| declarative.md | Declarative UI (package @declarative): Node/mount render tree + Store/Signal reactive bindings (signals: computed with automatic dependency tracking + batch) |
| layout.md | Layout style key quick reference: all Yoga flexbox style keys (enum / numeric / edge / special) + common-combination examples |
| components-ui.md | Themed component library quick reference (package @components): Element-Plus-style themed components (buttons/input/selection/forms/navigation/layout/data display/charts/icons/feedback/overlays), per-API signatures + parameter tables + examples; charts cover line/bar/donut/gauge/scatter plus extended charts (radar/heatmap/candlestick/funnel/boxplot/sankey) and a second batch of hierarchy/geo/force/stream charts (tree/treemap/sunburst/geo map + flights/force graph/parallel coordinates/theme river/ripple scatter/pictorial bar) with a cross-cutting interactive layer (hover tooltip + hit testing, clickable legend, DataZoom pan/zoom, markLine/markArea, VisualMap, export) |
| components.md | Widget API quick reference: both classic setter and X::make props styles, including upstream pitfalls |
| adaptation.md | Platform adaptation notes: field-tested pitfalls per platform, root causes, and verification conclusions (continuously updated) |
| tray.md | Linux tray solution: SNI protocol stack design, architecture, backend fallback, desktop compatibility |
| autostart.md | Cross-platform autostart: XDG .desktop on Linux / HKCU Run key on Windows, unified is_enabled / enable / disable |
| zh/system-capabilities.md (Chinese) | System capabilities (package @system, Chinese only): screen brightness / keyboard backlight / system volume (wpctl first, pactl fallback; output devices + per-app streams) / media playback control (MPRIS, playerctl fallback) / night color temperature / wallpaper / monitor configuration / window management / clipboard watching / disk volumes (udisks2 first, lsblk fallback) / power & sessions / power profiles / system info / timezone & language / Bluetooth / sensors / printers / process env & directory listing / recent files / browser bookmarks & Firefox history / installed-app lookup / VS Code local history & recent workspaces / browser history & downloads, unified Result semantics; includes the shared subprocess (procrun) and generic D-Bus (traybus) layers |
| zh/plan-system-integration.md (Chinese) | System-integration expansion master plan: the batch breakdown of P1-P12 plus the closing item P14, acceptance gates, shared-infrastructure decisions and risks (finalized) |
| relink.md | Forcing a relink after native layer (shim/vendor) changes: detection and handling |
For the project overview and quick-start entry points, see the repository root README.md.
